Electronic Appliance & Battery Manufacturing Assembly Line

Electronic Appliance & Battery Manufacturing Assembly Line

In today’s world, the demand for electronic appliances, energy storage systems, and smart devices is growing at a rapid pace. Manufacturers face the challenge of producing high-quality products at scale while ensuring efficiency, cost-effectiveness, and flexibility to adapt to changing consumer needs. To meet these challenges, advanced automated assembly lines play a crucial role.

The Electronic Appliance & Battery Manufacturing Assembly Line is designed to address modern manufacturing challenges by combining automation, ergonomic design, lean production practices, and electrostatic discharge (ESD) safety into one integrated system. This project highlights the development of a rotary worktable-based conveyor line used in electronic assembly, battery pack manufacturing, and appliance production.

This document will cover:

  • The design and working principle of the line

  • Components and technologies involved

  • Manufacturing process flow

  • Applications across industries

  • Advantages and ROI benefits

  • Future scalability and digital transformation

System Overview

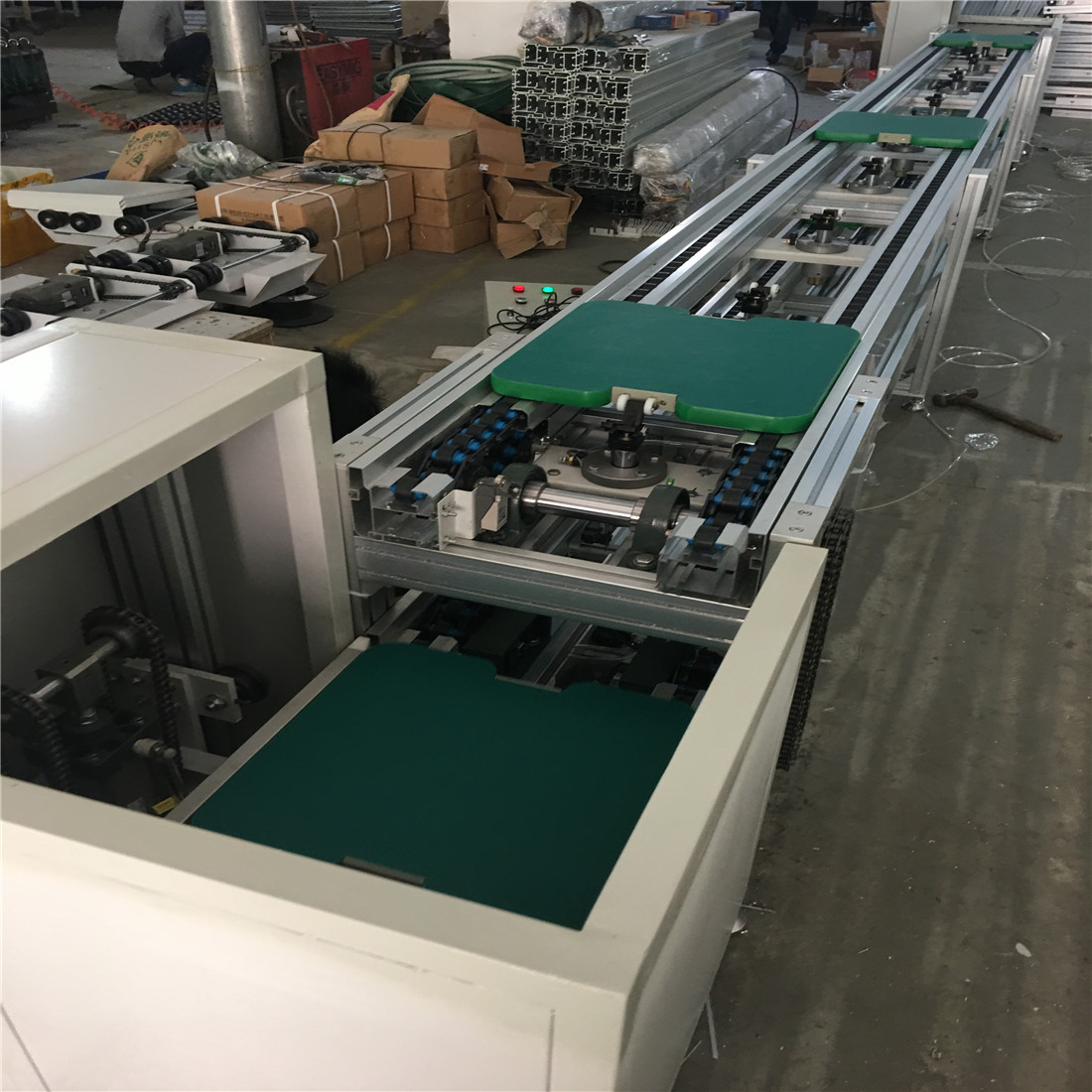

The assembly line shown in the images is a hybrid conveyor system with rotary worktables (circular platforms) integrated into a chain-driven track. Each station allows operators to work on a component while maintaining continuous product flow.

This modular system can be customized for different product types, including:

  • Electronic appliances (TVs, refrigerators, washing machines, soundbars, speakers)

  • Battery packs (lithium-ion, lead-acid, EV batteries, energy storage modules)

  • Electronic modules & PCBs (EMS, OEM services for telecom, networking, and consumer electronics)

Core Features

  1. Rotary Workstations – Operators can rotate products 360° for assembly or inspection.

  2. Chain-Driven Conveyor – Smooth and continuous product movement with speed control.

  3. ESD-Safe Design – Protects sensitive electronics and batteries from static discharge.

  4. Integrated Testing Points – Quality control embedded within production flow.

  5. Flexibility – Quick changeover for different product models.

  6. Ergonomic Layout – Reduces strain on workers, ensuring efficiency and safety.

Detailed Components of the Assembly Line

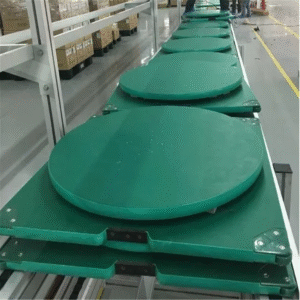

1. Rotary Worktables (Circular Pallets)

  • Mounted on conveyor tracks.

  • Designed with anti-slip ESD-safe material.

  • Provides 360° rotation for easy access during assembly.

  • Can support small electronic units to medium appliances.

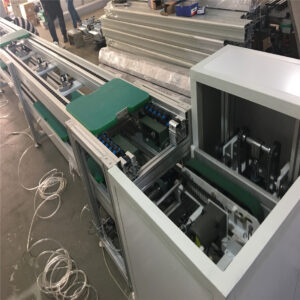

2. Conveyor Track

  • Chain-driven mechanism with speed-adjustable motors.

  • Ensures smooth flow of products from one station to another.

  • Equipped with side guards to prevent product slipping.

  • Designed for continuous operation with minimal downtime.

3. Motorized Drive System

  • Uses high-efficiency electric motors with chain/gear drive.

  • Includes frequency inverters for speed adjustment.

  • Low maintenance, long operational life.

4. Workstations

  • Each station is equipped with tooling, jigs, and fixtures specific to the product.

  • Workers or robots can perform assembly, soldering, testing, or packaging.

  • Ergonomic workstation height to reduce operator fatigue.

5. Testing & Inspection Units

  • In-line functional testing for electronic appliances.

  • Battery pack testing (voltage, charge/discharge cycles, insulation resistance).

  • Automated rejection system for defective products.

6. Control System

  • PLC-based control for conveyor and rotary table synchronization.

  • HMI (Human Machine Interface) for operators to monitor line status.

  • Integration with SCADA systems for real-time data tracking.

7. Safety & Compliance

  • ESD flooring and mats to protect sensitive electronics.

  • Safety guards and emergency stop switches along the line.

  • Compliance with ISO 9001, ISO 14001, and ISO 45001 standards.

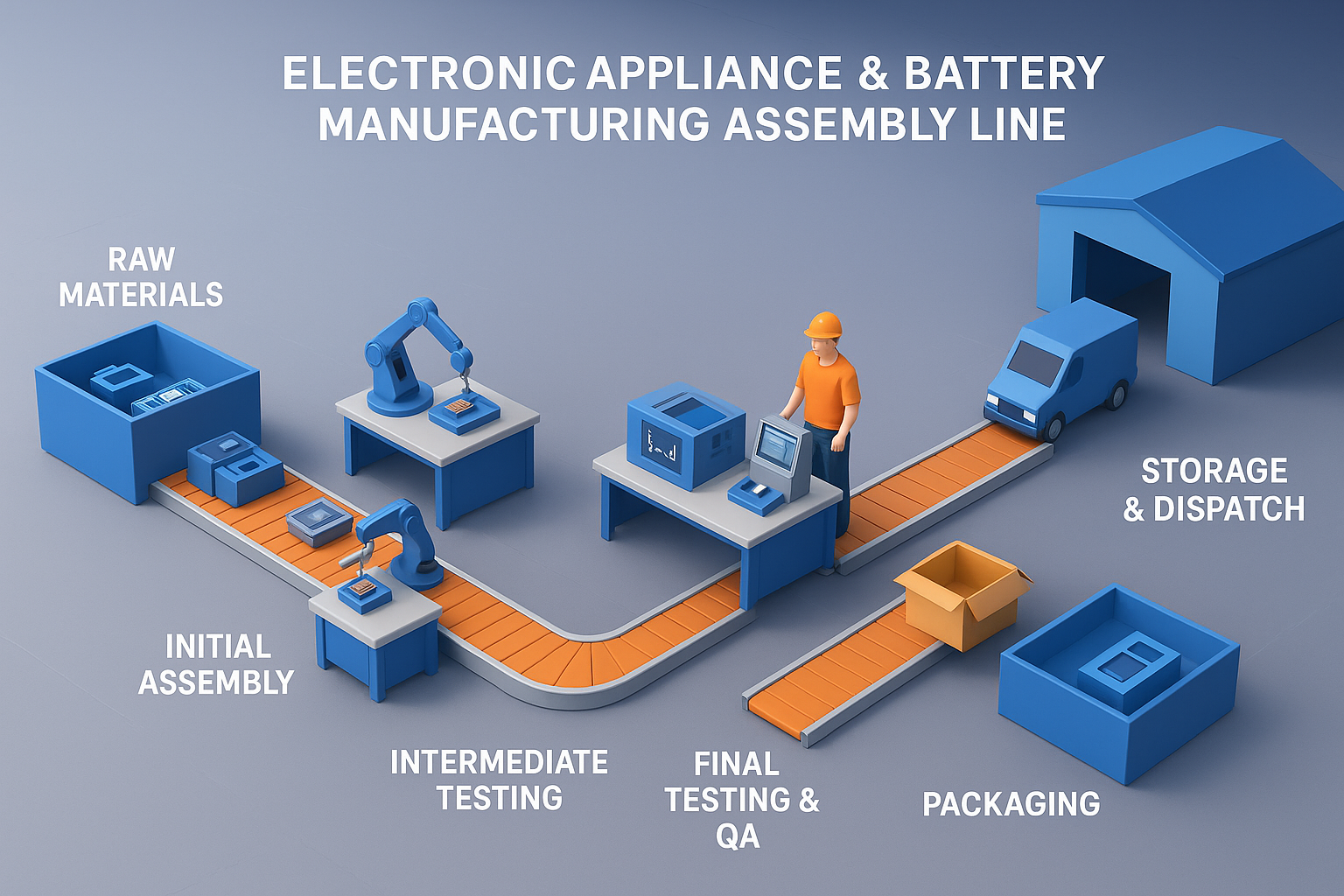

Manufacturing Process Flow

Step 1: Raw Material Handling

  • Components like PCBs, casings, wiring harnesses, and batteries are delivered to the production line.

  • Materials are sorted and placed in ESD-safe bins and racks.

Step 2: Initial Assembly

  • Workers mount components on rotary worktables.

  • Tasks may include PCB fitting, wiring, casing assembly, and sub-module integration.

Step 3: Intermediate Testing

  • In-process inspection to ensure functionality of sub-assemblies.

  • Battery packs are tested for cell balancing and insulation resistance.

  • Appliances are checked for electrical continuity.

Step 4: Final Assembly

  • Sub-modules are combined into the final product.

  • Battery enclosures, appliance housings, and electronics modules are secured.

Step 5: Final Testing & QA

  • Each unit undergoes functional testing.

  • Battery packs: charge/discharge cycles, voltage/current performance.

  • Appliances: power consumption, safety compliance, durability tests.

Step 6: Packaging

  • Approved products move to packaging stations.

  • Packed into corrugated boxes with protective padding.

  • Labeled for shipment with barcodes and QR tracking.

Step 7: Storage & Dispatch

  • Finished goods stored in warehouse zones.

  • Integrated with ERP/WMS systems for inventory management.

Applications Across Industries

The flexibility of this assembly line makes it suitable for:

  1. Consumer Electronics

    • Televisions, speakers, soundbars, AC units, refrigerators.

  2. Battery Manufacturing

    • Lithium-ion packs for EVs, UPS systems, energy storage.

  3. OEM/EMS Production

    • Telecom equipment, networking devices, contract manufacturing.

  4. Industrial Electronics

    • Power supplies, inverters, automation components.

  5. Home Appliances

    • Washing machines, microwave ovens, smart appliances.

Advantages of the Assembly Line

1. Increased Productivity

  • Continuous product flow reduces idle time.

  • Rotary tables allow simultaneous work from multiple operators.

2. Enhanced Quality Control

  • In-line testing ensures zero-defect manufacturing.

  • Defective products are identified early, reducing wastage.

3. Flexibility & Scalability

  • Can be adapted for different product sizes and models.

  • Quick changeover supports multi-product manufacturing.

4. Cost Efficiency

  • Reduces labor costs through automation & optimized workflow.

  • Lower operational costs compared to manual assembly.

5. Worker Safety & Ergonomics

  • Designed at optimal height for reduced operator fatigue.

  • ESD protection ensures product and worker safety.

6. Lean Manufacturing Integration

  • Supports Kaizen, 5S, Kanban, and Just-in-Time (JIT).

  • Reduces waste, inventory, and cycle times.

Future-Ready Digital Integration

To stay aligned with Industry 4.0, the assembly line can be upgraded with:

  • IoT-enabled sensors for real-time monitoring.

  • AI-based predictive maintenance for motors and chains.

  • Digital twins for simulation and process optimization.

  • MES (Manufacturing Execution Systems) for shop floor integration.

  • Data analytics dashboards for productivity insights.

Return on Investment (ROI)

  • Initial Investment: Moderate (depending on automation level).

  • Payback Period: 12–24 months due to labor savings and increased throughput.

  • Productivity Gain: 30–50% improvement compared to manual assembly.

  • Defect Reduction: Up to 70% fewer reworks through integrated QA.

Conclusion

The Electronic Appliance & Battery Manufacturing Assembly Line is a modern, flexible, and high-efficiency solution that helps manufacturers meet the growing global demand for electronics, batteries, and smart appliances. With its rotary workstations, chain-driven conveyors, and ESD-safe design, it ensures precision, quality, and scalability while reducing costs and increasing production speed.

By integrating lean manufacturing principles and Industry 4.0 technologies, this system is future-ready, offering manufacturers a competitive edge in the global market.
