The global shift toward sustainable energy and electric mobility has transformed the way industries manufacture and deploy battery systems. Electric Vehicles (EVs) rely heavily on lithium-ion batteries as their primary energy storage system, making battery production one of the most critical aspects of the EV supply chain. The rapid growth in EV adoption, supported by government policies, technological breakthroughs, and consumer demand for eco-friendly alternatives, has fueled the need for efficient and automated EV battery manufacturing lines.
An EV battery manufacturing line is a highly advanced assembly and testing system designed to streamline the production of battery packs, modules, and individual cells. Unlike conventional battery assembly for small electronics, EV batteries demand greater precision, scalability, automation, and safety features to ensure durability, high energy density, and compliance with stringent quality standards.
The modern EV battery assembly line integrates advanced conveyor systems, robotic handling, testing stations, and quality inspection units to deliver consistent and high-quality production. These lines are scalable to handle various battery chemistries such as Lithium Nickel Manganese Cobalt Oxide (NMC), Lithium Iron Phosphate (LFP), and advanced solid-state batteries in the near future.
In this project, we examine the structure, functioning, and benefits of an EV battery manufacturing line. We will also explore its applications in industries, the process flow of assembly, and the advantages it brings in terms of efficiency, safety, and return on investment.
2. System Overview
An EV battery manufacturing line is not just a conveyor system but a fully automated and modular production ecosystem. It is designed to handle multiple stages of production, from raw cell handling to final battery pack assembly and end-of-line testing. The system incorporates:
Conveyors and Pallet Systems – Used to transport cells, modules, and packs across different assembly stages.
Robotic Handling Units – Automate the placement and movement of cells to ensure high precision.
Welding and Bonding Stations – Perform ultrasonic welding, laser welding, or wire bonding for electrical connections.
Battery Management System (BMS) Integration – Embeds the electronic control unit that monitors voltage, temperature, and safety.
End-of-Line Testing – Includes electrical performance testing, leak testing, insulation resistance checks, and charge-discharge cycling.
Traceability and Quality Control – Each battery undergoes real-time monitoring with tracking IDs for compliance and recalls.
The system is modular, meaning it can be customized based on production requirements, such as whether a manufacturer wants to assemble pouch cells, cylindrical cells, or prismatic cells into modules and packs.
3. Key Components of an EV Battery Manufacturing Line
Conveyors

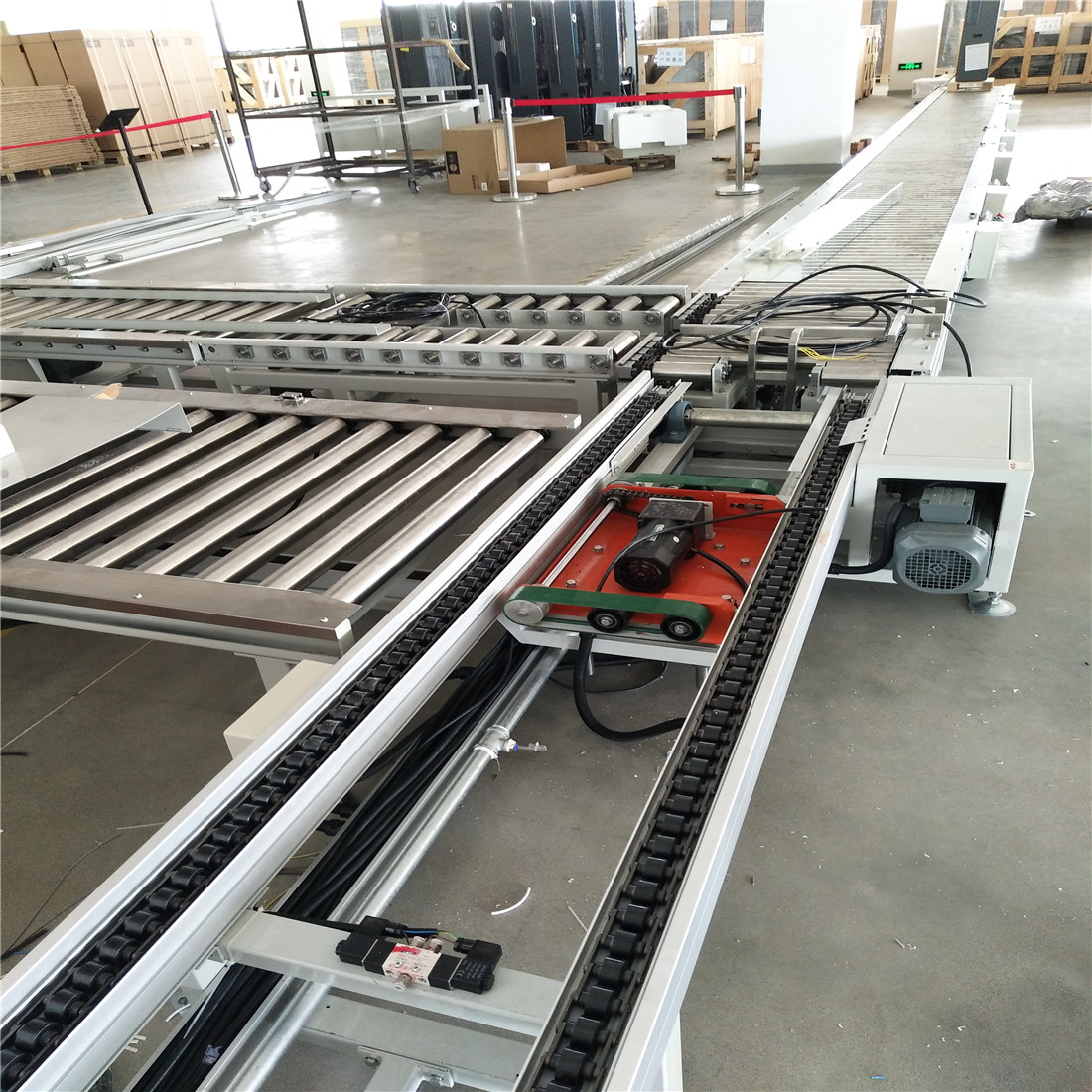

The backbone of the assembly line, conveyors transport pallets and components across workstations. Chain conveyors and roller conveyors are most commonly used for EV battery assembly due to their ability to handle heavy modules and packs.
Workstations
Dedicated workstations are installed at specific intervals for tasks such as welding, sealing, assembly, and testing. These workstations can be fully automated or semi-automated depending on investment and scale.
Robotic Arms and Automation Units
Robots perform repetitive tasks such as cell stacking, adhesive dispensing, and pack loading. This ensures consistency and reduces human error.
Welding Systems
Welding technologies like ultrasonic welding, laser welding, and resistance welding are critical for creating reliable electrical connections between cells, busbars, and terminals.
BMS Integration Module
A Battery Management System (BMS) is installed during assembly. It acts as the brain of the battery pack, monitoring parameters like voltage, current, and thermal conditions to prevent failures.
Cooling System Integration
Modern EV batteries require liquid or air cooling systems. The manufacturing line integrates cooling plates, thermal pads, or channels during the assembly stage.
Testing Equipment
End-of-line testing machines check the performance, insulation, sealing, and overall safety of each pack. Failures are identified early, preventing defective units from reaching customers.
Control Systems
Programmable Logic Controllers (PLCs), sensors, and HMIs (Human Machine Interfaces) manage the synchronization of conveyors, workstations, and testing units.
4. Step-by-Step Process Flow
The EV battery assembly line follows a structured process flow:
Step 1: Raw Cell Handling
Individual lithium-ion cells (pouch, prismatic, or cylindrical) are supplied to the line.
Robotic arms pick and place the cells into predefined arrangements.
Step 2: Cell Grouping and Sorting
Cells are grouped into modules according to design.
Sorting ensures only qualified cells are used, eliminating defective ones.
Step 3: Module Assembly
Cells are mechanically aligned and housed within module frames.
Ultrasonic or laser welding bonds electrical connections between cells.
Adhesives and insulation materials are applied to secure the assembly.
Step 4: Busbar Installation
Conductive busbars are installed for electrical flow across modules.
Precision welding ensures low resistance and high durability connections.
Step 5: Cooling Integration
Cooling plates, channels, or liquid cooling systems are installed.
Thermal pads are placed to improve heat dissipation.
Step 6: BMS Integration
Battery Management System is attached and connected to sensor wires.
Firmware is uploaded to calibrate monitoring functions.
Step 7: Pack Assembly
Multiple modules are integrated into a complete pack.
Casing, sealing, and structural reinforcements are added.
The pack is designed to withstand vibrations, shocks, and thermal expansion.
Digital Twins – Virtual simulations improve line efficiency before physical deployment.
Sustainability – Integration of recycling and second-life battery assembly.
8. ROI & Cost-Benefit Analysis
Implementing an EV battery manufacturing line requires significant capital investment in conveyors, robotics, welding systems, and testing equipment. However, the return on investment is high due to:
Increased production capacity.
Reduced labor costs.
Lower defect rates.
Enhanced product quality.
Compliance with international standards leading to higher market acceptance.
Over a period of 3–5 years, the automated line typically pays back its investment and supports long-term profitability.
9. Conclusion
The EV battery manufacturing assembly line is a cornerstone of the electric mobility revolution. With its ability to deliver high-quality, safe, and efficient battery packs, it ensures that manufacturers can meet the growing global demand for electric vehicles. The line integrates advanced conveyors, robotics, BMS systems, and testing modules to provide a seamless flow from raw cells to finished packs.
By adopting automation and digital technologies, these lines not only improve productivity but also secure the future of sustainable transportation. As the EV industry evolves toward higher capacities and new chemistries, battery assembly lines will remain the foundation of innovation and growth.
