The global electronics industry has witnessed significant growth with rising demand for computers, televisions, and professional display systems. Monitors, being a crucial component of personal computing, gaming, commercial displays, and industrial applications, require advanced manufacturing processes to ensure high-quality visuals, durability, and energy efficiency.
A monitor production line is a highly automated and modular assembly system designed for mass production of LCD, LED, and OLED monitors. Unlike small-scale electronics assembly, monitor production requires large-scale integration of display panels, driver boards, backlight units, enclosures, and rigorous performance testing.
Modern production lines integrate conveyors, robotic arms, automated screw fastening units, optical testing systems, and packaging stations to deliver precision, scalability, and quality consistency. This project provides an in-depth explanation of the structure, components, process flow, applications, and benefits of a monitor production line.
2. System Overview
The monitor production line is a synchronized ecosystem of mechanical, electronic, and automation systems. It covers all stages from component feeding to final testing and packaging.
Key integrated systems include:

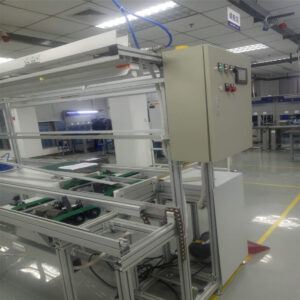

Conveyor Systems – For continuous transportation of monitor units across workstations.
Panel Handling Systems – Specialized robotic units and suction tools to handle fragile LCD/OLED panels.
Assembly Stations – For bezel fitting, PCB installation, backlight assembly, and cable connections.
Testing Stations – Automated inspection of brightness, color calibration, and pixel defects.
Packaging Systems – Labeling, carton packing, and palletizing for dispatch.
The modular design allows flexibility to produce various screen sizes (14”–65”) and technologies (LCD, LED, OLED, 4K, curved monitors).
3. Key Components of Monitor Production Line
3.1 Conveyor Systems

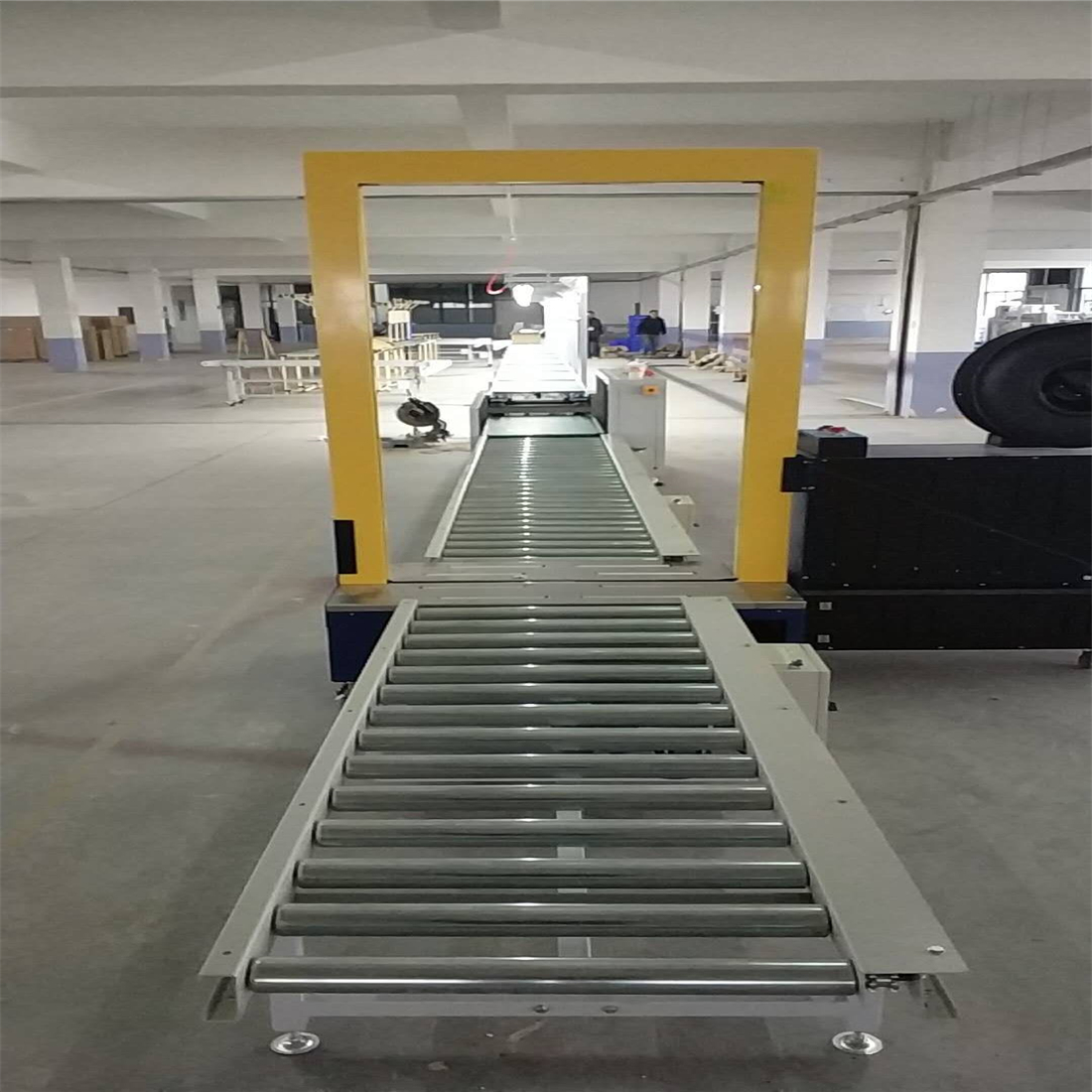

Roller and belt conveyors designed for delicate handling of flat screens, ensuring safe and efficient transfer.
3.2 Panel Assembly Units
Robotic pick-and-place units align and assemble fragile glass panels with protective bezels and casings.
3.3 PCB & Driver Board Installation
Automated screwdrivers and soldering units fix the mainboards, driver boards, and T-CON boards into the monitor housing.
3.4 Backlight Integration
Backlight units (LED edge-lit or direct-lit) are installed and aligned for uniform brightness.
3.5 Wiring & Connector Assembly
Automated harnessing machines install ribbon cables, connectors, and power supply units.
3.6 Optical Testing Stations
Advanced optical test systems check pixel uniformity, brightness levels, color accuracy, and refresh rates.
3.7 Functional Testing Stations
Monitors undergo performance tests including power-on self-check, display response, and interface validation (HDMI, DisplayPort, USB-C).
3.8 Packaging Stations
After passing quality checks, monitors are packed in protective cartons with foam inserts, labeled with barcodes/QR codes, and palletized for shipment.
3.9 Control Systems
PLCs and Human Machine Interfaces (HMIs) synchronize conveyors, robots, and testing equipment, ensuring smooth production flow.
4. Step-by-Step Process Flow
Step 1: Panel Preparation
LCD/OLED panels are carefully unpacked.
Robotic arms transfer panels to the assembly line.
Step 2: Bezel & Housing Assembly
Plastic/metal bezels are attached to protect the panel edges.
Housing frames are fixed for structural stability.
Step 3: PCB & Driver Board Installation
T-CON and mainboard are installed using automated screwdrivers.
Firmware is uploaded for functionality.
Step 4: Backlight & Power Supply Integration
LED backlights and power supply units are fitted.
Cooling or heat dissipation systems are added.
Step 5: Wiring & Connector Assembly
Ribbon cables and connectors are precisely installed.
Ports (HDMI, USB, VGA, etc.) are secured.
Step 6: Optical & Functional Testing
Brightness, color calibration, and response times are checked.
Dead/stuck pixels and defects are identified.
Functionality of ports and buttons is verified.
Step 7: Cosmetic & Quality Inspection
Surface inspection for scratches or defects.
Compliance with design and quality standards.
Step 8: Packaging & Labeling
Foam inserts, protective films, and cartons used.
Barcodes and QR codes applied for traceability.
Step 9: Dispatch
Finished units palletized and shipped to distributors.
Flexibility – Adaptable for LCD, LED, OLED, and curved monitors.
Traceability – Barcode/QR systems for tracking and recalls.
Reduced Human Dependency – Automation minimizes errors and labor cost.
7. Future-Ready Features & Automation Trends
AI-Driven Testing – Automated defect recognition using machine vision.
Robotics & Cobots – Collaborative robots assist in precision assembly.
Digital Twin Simulation – Virtual modeling for optimizing production flow.
Smart Factory Integration – IoT-enabled monitoring for predictive maintenance.
Eco-Friendly Designs – Recycling systems for defective panels and components.
8. ROI & Cost-Benefit Analysis
Although establishing a monitor production line involves significant capital investment in conveyors, robots, and testing equipment, the ROI is attractive due to:
Increased production capacity.
Consistent high-quality products with fewer defects.
Reduced labor dependency and costs.
Compliance with international quality standards.
Improved market competitiveness and customer trust.
Typically, ROI is achieved within 3–4 years, depending on production scale and level of automation.
9. Conclusion
The monitor production line is a critical enabler of modern electronics manufacturing, ensuring high-quality displays for consumer, commercial, and industrial use. By integrating conveyors, robotics, optical testing, and packaging systems, manufacturers can achieve efficiency, scalability, and quality control.
As the demand for high-resolution, energy-efficient, and smart monitors grows, production lines will continue evolving with AI, IoT, and sustainable practices, making them a cornerstone of the electronics industry’s future.
