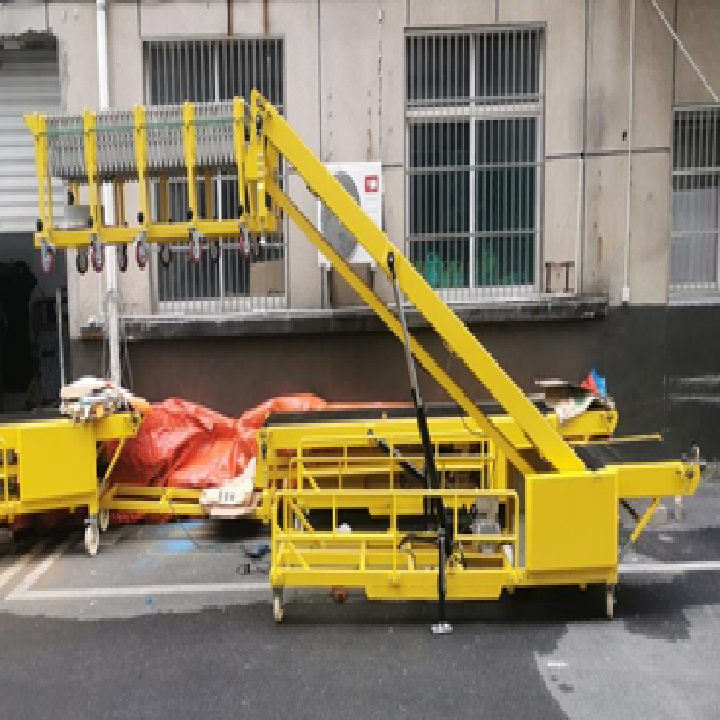

Motorized Loading Belt Conveyor

Motorized Loading Belt Conveyor

The Motorized Loading Belt Conveyor is a heavy-duty and adjustable material handling solution designed to streamline the loading and unloading of goods in warehouses, factories, and logistics centers. Built with a strong drive system and adjustable height, this conveyor ensures smooth, efficient, and ergonomic transfer of cartons, parcels, and bulk goods.

1. Dimensions & Structure

• Length (L): 3700 + 900 mm → Total length of 4.6 meters (main section plus extended section).

• Width (W): 800 mm → Wide enough to handle medium and large cartons, packages, or totes.

• Height (H): 700 – 2500 mm adjustable → Offers a wide height range, making it suitable for loading/unloading trucks, containers, and storage racks of various heights.

2. Drive & Power System

• Motor: Powered by a CPG motor, 1.5 kW, robust enough to handle continuous heavy-duty operations.

• Power Supply: Runs on standard 230V / 50Hz.

• Delta Inverter: Provides variable speed control for efficiency and safety.

3. Speed Adjustment

• Adjustable conveying speed from 5 to 30 meters per minute.

• Low speed (5 m/min): Best for fragile or heavy packages requiring careful handling.

• High speed (30 m/min): Suitable for fast-moving operations like parcel handling, e-commerce, and bulk logistics.

4. Load Capacity

• 100 kg per meter → Strong enough to handle medium to heavy loads.

• For a 4.6-meter conveyor, the distributed load capacity is around 460 kg.

5. Applications

• Truck & Container Loading/Unloading – Adjustable height makes it ideal for different vehicle sizes.

• Warehouses & Distribution Centers – Move goods between storage, docks, and processing areas.

• Factories & Assembly Lines – Transfer raw materials or finished products efficiently.

• E-commerce & Logistics Hubs – Handle large volumes of packages quickly and safely.

Key Highlights

• Adjustable height (700–2500 mm): Flexible to match vehicle and dock levels.

• Robust 1.5 kW motor: Ensures smooth, reliable performance.

• Variable speed (5–30 m/min): Adaptable to different operations.

• Load capacity: 100 kg/m: Built for heavy-duty use.

• Ideal for loading/unloading trucks, containers, and warehouses.

In short, this Motorized Loading Belt Conveyor is a powerful, efficient, and highly adaptable conveyor system, designed to improve productivity, reduce manual handling, and provide safe, ergonomic material transfer.
