The home appliance industry is rapidly evolving with growing consumer demand for energy-efficient, durable, and cost-effective refrigerators. Refrigerators are essential household and commercial appliances, and their production requires precision, automation, and strict quality standards. With increasing global competition, manufacturers are shifting toward automated production lines to improve efficiency, reduce costs, and maintain consistent product quality.
A refrigerator production line is a fully integrated system that combines conveyors, assembly stations, robotic handling units, quality testing machines, and packaging systems to streamline the entire manufacturing process. Unlike small appliance assembly, refrigerators require larger-scale operations involving metal forming, insulation foaming, compressor assembly, cooling system integration, and rigorous testing.
The modern production line ensures scalability, flexibility to produce different models (single-door, double-door, side-by-side, smart refrigerators), and compliance with energy efficiency and safety regulations. In this project, we present the structure, functionality, and advantages of a refrigerator production line.
2. System Overview
A refrigerator production line is more than just a conveyor belt — it is a modular, automated, and synchronized manufacturing ecosystem designed to handle all stages of refrigerator production:
Sheet Metal Processing – Cutting, bending, and forming of refrigerator body panels.
Foaming Line – Injection of polyurethane insulation between cabinet walls.
Assembly Line – Installation of doors, compressors, wiring, cooling circuits, and accessories.
Testing Line – Performance, leakage, and energy efficiency testing.
Packaging Line – Final inspection, labeling, and carton packaging.
The system integrates conveyor systems, programmable logic controllers (PLCs), robotic handling units, and automated testing stations to ensure smooth workflow and consistent quality.
3. Key Components of Refrigerator Production Line
3.1 Conveyor Systems

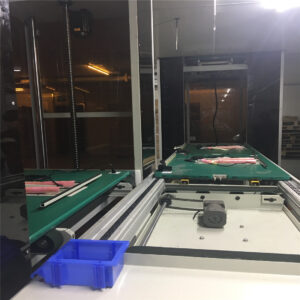

Chain and roller conveyors transport refrigerator bodies and components between workstations. These conveyors can handle large and heavy units efficiently.
3.2 Workstations
Stations are arranged sequentially for tasks such as door assembly, wiring, compressor installation, foaming, and sealing.
3.3 Robotic Handling Units
Robots assist in lifting, positioning, and assembling heavy or repetitive components such as compressors, doors, and insulation panels.
3.4 Foaming Equipment
Polyurethane (PU) foaming machines inject insulation material into the refrigerator cabinet, ensuring thermal efficiency and durability.
3.5 Cooling System Assembly
This includes installation of evaporators, condensers, capillary tubes, and compressors with high precision to ensure optimal cooling performance.
3.6 Electrical and Wiring Integration
Automated wire harnessing units install wiring and connect electronic modules, including thermostats, sensors, and smart control units.
3.7 Testing Stations
End-of-line testing machines check cooling efficiency, leakage, energy consumption, and overall performance. Safety checks like insulation resistance and earth leakage are also conducted.
3.8 Control & Monitoring Systems
PLCs, SCADA, and Human Machine Interfaces (HMIs) control the synchronization of conveyors, assembly stations, and testing units.
3.9 Packaging Systems
After testing, refrigerators are labeled with barcodes/QR codes for traceability, securely packaged, and prepared for dispatch.
4. Step-by-Step Process Flow
Step 1: Sheet Metal Processing
Cutting and forming steel panels for refrigerator cabinet and doors.
Surface treatment (powder coating or painting) for durability.
Step 2: Cabinet Assembly
Inner and outer panels are joined.
Robotic arms place components precisely.
Step 3: Foaming Process
PU foam is injected between cabinet walls for insulation.
Curing process ensures structural strength.
Step 4: Cooling System Installation
Evaporator, condenser, and capillary tubes are fitted.
Compressors are mounted and welded into position.
Step 5: Electrical Wiring & Module Integration
Wire harnesses, thermostats, lighting systems, and smart control modules are installed.
Testing for continuity and safety.
Step 6: Door Assembly
Doors are fitted with hinges, gaskets, and handles.
Alignment and sealing checks are performed.
Step 7: Final Assembly
Interior fittings such as trays, shelves, and drawers are installed.
Cosmetic finishing and surface inspection.
Step 8: Quality & Performance Testing
Cooling efficiency test.
Energy consumption check.
Leak detection and safety validation.
Step 9: Packaging & Dispatch
Refrigerators are labeled, barcoded, and packed in cartons.
Units are stacked and sent for distribution.
5. Applications & Industry Relevance
Refrigerator production lines are crucial in:
Household Refrigerators – Single-door, double-door, and smart fridges.
Commercial Refrigerators – Deep freezers, display coolers, and industrial cold storage.
Medical & Pharmaceutical Applications – Vaccine storage refrigerators and lab cooling units.
Food & Beverage Industry – High-capacity refrigeration systems.
6. Advantages of Refrigerator Production Line
High Precision – Robotic systems ensure consistency.
Efficiency – Automated conveyors reduce downtime.
Flexibility – Capable of handling different models and designs.
Scalability – Easily expandable for higher production volumes.
Energy Efficiency Compliance – Testing ensures international certification standards.
Traceability – Barcode and QR systems track each unit.
Reduced Human Error – Automation minimizes manual mistakes.
IoT Integration – Smart refrigerators with remote diagnostics.
Robotics & AI – Advanced robots for faster assembly and defect prediction.
Digital Twins – Virtual simulation for optimizing production flow.
Sustainability – Eco-friendly refrigerants and recyclable materials.
Energy Optimization – Integration of AI-based efficiency monitoring.
8. ROI & Cost-Benefit Analysis
While initial investment in conveyors, foaming systems, robotics, and testing equipment is high, the return on investment is realized through:
Increased production capacity.
Lower labor costs.
Higher product quality with reduced defect rates.
Compliance with international energy efficiency standards.
Greater customer satisfaction and brand reputation.
Typically, a refrigerator production line achieves ROI within 3–5 years, depending on scale and automation level.
9. Conclusion
The refrigerator production line is the backbone of modern appliance manufacturing. By integrating automated conveyors, robotic systems, foaming technology, and rigorous testing, manufacturers can ensure consistent product quality, energy efficiency, and cost-effectiveness.
With growing demand for eco-friendly and smart appliances, refrigerator assembly lines will continue to evolve, adopting IoT, AI, and sustainable manufacturing practices. This ensures long-term profitability and positions manufacturers to meet global market demands efficiently.
